The first 4-pole motor with a built-in chip which helps ESC identify it's a HOBBYWING motor (only when pairing it with the XeRun XR8 series of ESCs) and the XR8 ESC create a power system which is able to work in the "sensored" mode (at all times) and provide users with the better performance and smoother control. Note: this motor is compatible with other ESCs but unable to work in the "sensored" mode at all times.
The Turbo Timing which is widely used (by 2-pole motors) in 1/10 scale on-road racing can be enabled to unleash the utmost power of the motor when pairing the XeRun 3652/3660 G2 with the XeRun XR8 series of ESCs.
The HOBBYWING-patented "error-free" Hall sensing system adopted by the motor guarantees users the steady operation in the “sensored” mode. A separate high-speed high precision encoder always outputs the clean signals (indicate the position of the rotor) and protects the Hall sensing system from other signal interference.
The HOBBYWING-patented 4-pole-8-magnet "staggered pole" rotor with the extremely low cogging effect and torque pulsation greatly improves the driving feel around corners.
The use of double insulated windings (200? R-leveled), Japanese NMB bearings, super thin silicon steel sheets and the high-intensity adhesive (300?) guarantees users the outstanding performance and great durability. (With the strength of the motor is guaranteed,) the wheel hub design adopted by front & rear end bells effectively reduces the motor weight.
HobbyWing XeRun 3652 SD G2 Features:
- Full-sensored Mode
- Turbo Timing Technology
- Bi-directional Adjustable Timing
- Advanced Hall Sensing System
- Low Cogging Torque
- Quality Materials & Excellent Design
- Turbine Design
- Compatible with the XeRun XR8 SCT ESC
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Pole Count: 4
- KV Rating: 5100
- LiPo Cells: 2S
- No-load Current(A): 4.7
- Resistance(mΩ): 3.5
- O.D.(mm): 36mm (1.417in)
- Length(mm): 52.5 (2.067in)
- Shaft Diameter(mm): 5 (0.197in)
- Weight(g): 192
- Shaft Length(mm):15 (0.591in)
- Timing: 20-40 Degrees (Adjustable)

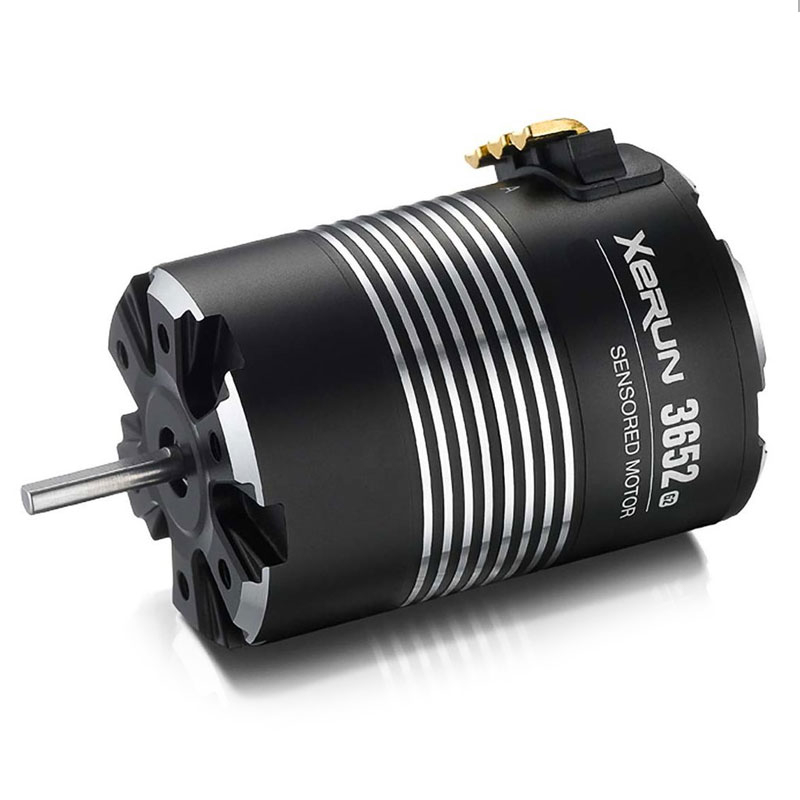

HOBBYWING XERUN 3652SD D5.00 5100KV G2 MOTOR (BLACK)
- Brand: Hobbywing
- Product Code: HW30401060
- Availability: In Stock
